Titan Misalignment Flange

The Titan Misalignment Flange provides ease of makeup to an industry standard flange face where rotational and angular misalignment induces complications. These features significantly reduce installation time by easing the assembly process and removes stresses that would otherwise be induced by forced rotation and articulation of the spool piece during makeup.

Features

  • Provides angular adjustment of +10° (20° included)
  • 360° bolt hole rotation to align with mating flange holes for ease of bolt insertion
  • Repeatable, integral metal-to-metal seal
  • Annulus test port and seal test feature
  • RTJ & RF seal faces available

The drawings below demonstrate the articulation of the misalignment ball which can be used to relieve the stresses on flange make ups.

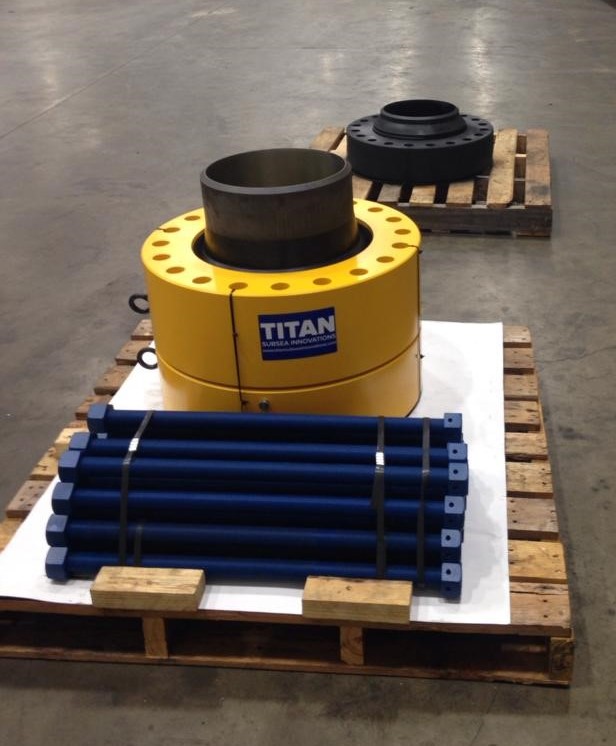

Titan Misalignment Flange Project Gallery
